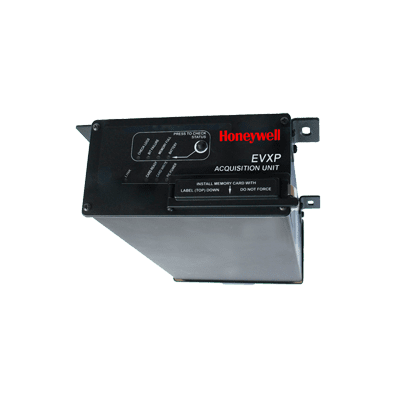

EVXP

EVXP health monitoring system merges on-board system and ground-based carry-on products technology. The on-board EVXP monitors aircraft health, operational, and usage parameters. The system performs data management, enhanced vibration diagnostics for detecting issues, event or exceedance detection, main rotor track and balance, tail rotor balancing, operations usage recording, and system functions (built in tests).

HONEYWELL CHADWICK-HELMUTH EVXP BENEFITS/FEATURES:

  • Simultaneously collecting data from up to four vibration, azimuth and tracking inputs
  • Collecting both vibration and Rotor Track and Balance flight regime data in any order,
    thereby providing flexibility during dedicated flight tests and eliminating the need to
    restart tests
  • Providing immediate feedback of vibration exceedances via the DU, thereby eliminating
    the need to review the data post-flight using the ground station software
  • Comprehensive ground support software tools available for flight crews, maintainers,
    and engineers with capabilities to interface with operators’ maintenance system

FULLY CERTIFIED AND AVAILABLE VIA BOTH U.S. FAA AND CANADIAN TRANSPORT CANADA STC’S

  •  Meets the current regulatory requirements
  • Designed with provisions to support future HUMS functions
  • Interfaces to hardwired vibration and tachometer sensors located throughout the
    aircraft
  • Interfaces to optional carry-on equipment such as the FasTrak™ Optical Tracker for Main
    Rotor blade tracking
  • VXP installation support and training on the majority of aircraft types is provided by us.
  • Honeywell VXP STC’s exist on a wide variety of aircraft types
